FMZZ-50FG Open Mouth Bag Filling Machines , 25kg Bagging Machine For Powder

Ask Lasest Price
Brand Name :	Fair Machinery
Model Number :	FMZZ-50FG
Certification :	CE ISO
Price :	5000-12000 USD/set
Payment Terms :	T/T, Western Union, MoneyGram, L/C, D/A, D/P,Pyple
Supply Ability :	200-500 sets/month
Delivery Time :	3-7 days

Add to Cart

Product Details
Company Profile

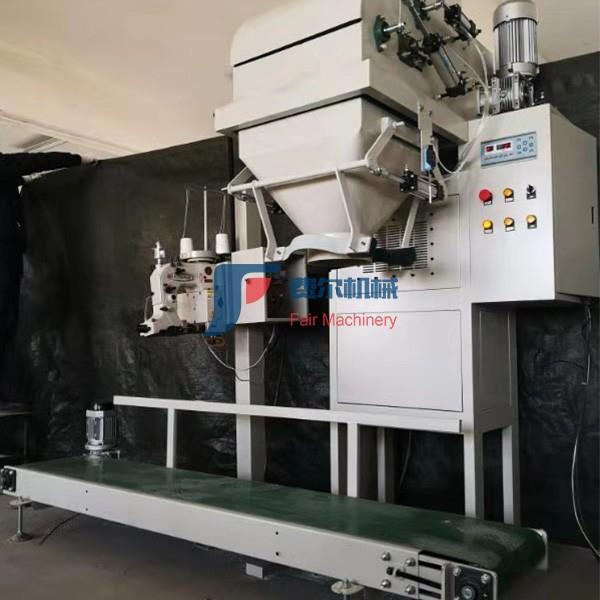

FMZZ-50FG Open Mouth Bag Filling Machines , 25kg Bagging Machine For Powder

FMZZ-50FG Open Mouth Bag Filling Machines , 25kg Bagging Machine For Powder

Application Materials(products)

Screw feeding type packing machine suit for pack powder of any industry,such as flour, starches, lime powder, cement, fertilizer,silica sand powder, nitrate of potash, ammonium sulfate etc

Application Bags(open mouth bags)

This bagging machine is especially designed for pack materials(products) into open mouth bags,such as plastic woven bags,kraft bags,paper-plastic compound bags,sacks,barrel etc

Specifications:

Material of machine: All stainless steel
Metering Mode: Gross Weighing (with the packing bag)
Packing Weight: 5— 50KG
Feeding Mode :Screw feeder (or vibrator feeder)
Filling Accuracy: ≤±0.2%
Sealing Machine:heat sealing machine+sweaming machine
Filling Rate: ≤3Bags/min
Power Supply: 3P/380V(1P/220V according your requirement) 50—60Hz
Total Power: 3.9Kw. (without the power for the air supply)
Total Weight: 500Kg
Overall Dimensions:4500×1600×2400MM

2, Item: FMZZ-50FG

Application materials	powder
Display Resolution	5g, 10g
Weighing Range	5-50kg/bag or customized needs
Precisions	+/-(0.1-0.2)% FS
Packing Capacity	120-180 bags/hour
*Dimention(LWHmm)*	300012002600mm, the size can be customized according to your site
Power Supply	AC220V/380V, 50HZ, 1P/3P, customized available
Air Source	0.5-0.7 Mpa
Power	3KW
Working Temperature	-10~40 ℃
Relative Humidity	≤90% RH(Non-condesing)

Working process:

automatic discharge-automatic bag loose-automatic conveying-automatic bag closed by sewing/heat sealing

Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials

Characters of FAIR BAG Packaging machine:

1. With high environmental performance and a perfect exhaust system, thereby reducing the dust generated during the packaging process.
2. With high packaging precision, two kinds of feeding speed through the import of Mitsubishi frequency control, the whole electronic control using PLC control, the use of high-precision weighing sensor and the configuration of imported quantitative control instruments imported from Japan, the instrument can be equipped with standard interface, Communicate with the central system, the implementation of the overall control system for packaging monitoring.
3. The silo is equipped with broken arch device, in order to loose the material and avoid arch bridge.
4. Adopt bagging environment-friendly rubber-bag folder bag device, can seal the bag seal, so there will be no dust when packaging.

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer since 1997.

Q: What’s the guarantee of the machine?
A: We have 1 year’s guarantee of the machine
We would like to send you new one since we have one year warranty. You also can buy from your market if more convenient. And we will take videos and pictures to teach you how to replace it.
Engineers available to service machinery overseas. (You need to pay tickets, food, hotel and salary), but anyway it's up to you. But according to my experience, there's nearly no wearing parts.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: How to install the machine after we received the machine?
A: When you received the machine, just connect it with electric and air compressor then can run it. (It will cost a little more if you need our team to your place (you need to pay tickets, food, hotel and salary), but anyway it's up to you. We’ll test the machine and make sure the machine runs well before shipment. (We’ll send the testing video for your checking)

Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
