    Wall Coating Horizontal Lacquer Mixer Ribbon Agitators With Discharging Part

    Ask Lasest Price
    Brand Name : Fair Machinery
    Model Number : FMZZ-2T
    Certification : CE ISO
    Price : 3000-35000 USD/set
    Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A, D/P
    Supply Ability : 1000sets/month
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    Wall Coating Horizontal Lacquer Mixer Ribbon Agitators With Discharging Part

    Wall Coating Horizontal Lacquer Mixer Ribbon Agitators With Discharging Part

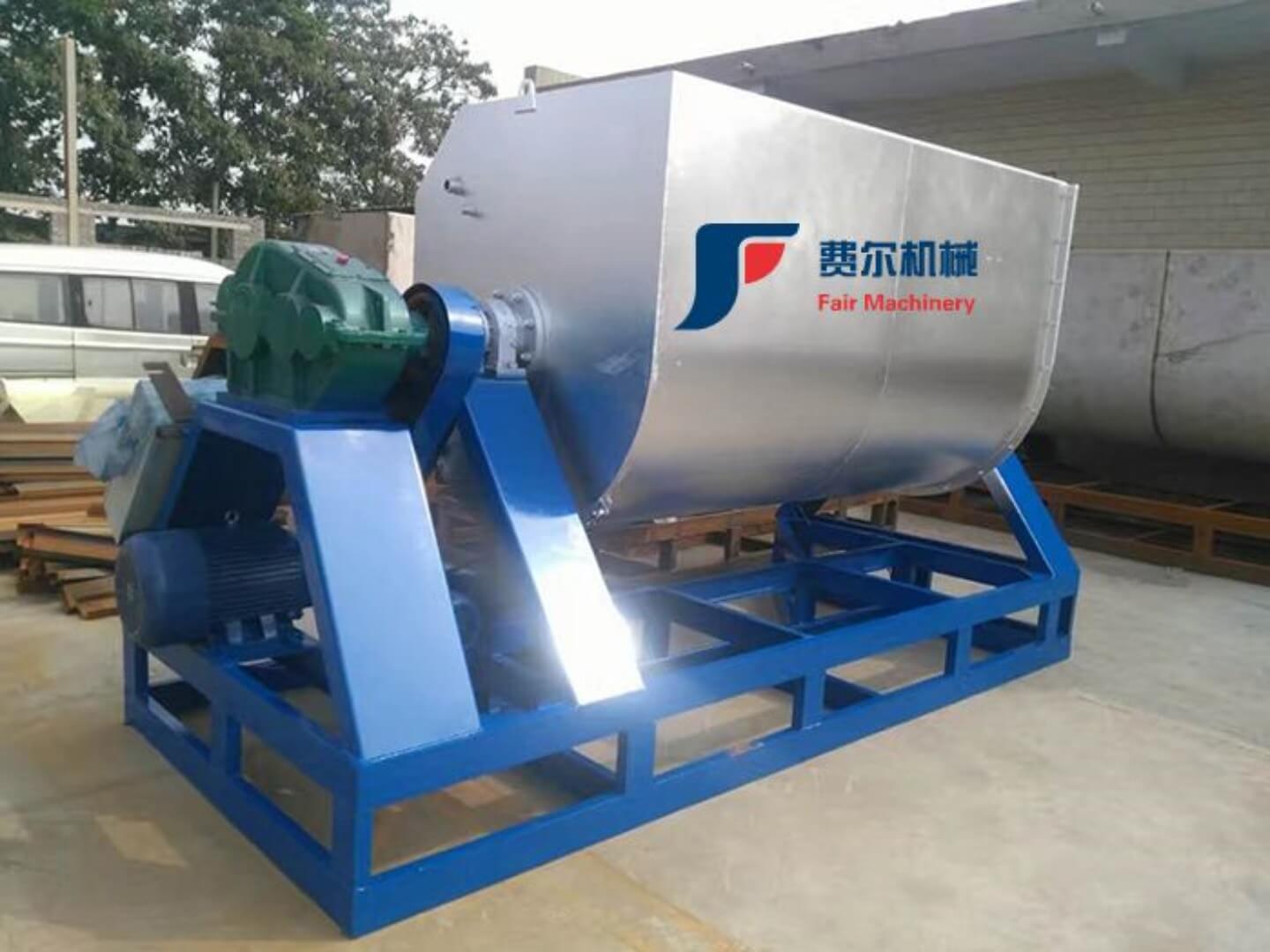

    Ribbon Mixer Machine is a new type, high efficiency mixing equipment, are widely used in food and chemical industry

    Overview:

    Model Number:FMZZ-2T

    Max. Loading Capacity:3000L

    Voltage:220V/380V

    Additional Capabilities:Coating

    Place of Origin:Henan, China (Mainland)

    Brand Name:Fair Machinery

    Mixer Type:Ribbon

    Product Type:batch

    Application:detergent

    Power(W):7.5KW

    Dimension(L*W*H):2140x900x1325mm

    Certification:ISO9001,CE

    Warranty: 2 Years

    Capacity:200-5000L

    Usage:Liquid Treatment

    Function:Blending

    Color:any

    Material:Stainless Steel

    Feature:High Viscosity Material

    Installation:Guide

    Name: ribbon mixer

    After-sales Service Provided: Engineers available to service machinery overseas

    Application scope:detergent, powder




    1. Introduction of Ribbon Mixer Machine


    1. mixing barrel, ribbon agitators, discharging part , driven unit and machine body.


    2, Sizes : available from 50-5000kg customized.


    3, Material: Carbon Steel, Stainless Steel 304, Stainless Steel 316L optional.


    4, Discharge : Flap valve, butterfly valve, slide gate valve, ball valve


    5, Rotation Speed: stable speed or variable speed control by frequency inverter.


    6, Heating :mixer can be equipped with heating or cooling jacket if needed


    2. Technical Parameters of Detergent Powder Ribbon Mixer Machine

    Type(FMZZ-)

    Power(kw)

    Cylinder size(mm)

    Dimension (mm) LWH

    1T

    5.5

    Φ850×1250

    2140x900x1325

    2T

    7.5

    Φ1050×1875

    2940x1300x1800

    3T

    11

    Φ1050×3530

    3315x1300x1800

    5T

    15

    Φ1400×2500

    3850x1700x2240

    10T

    22

    Φ1600×3000

    4400x1700x2560

    15T

    30

    Φ1600×4200

    5250x1850x2600

    20T

    37

    Φ1850×4300

    6250x1900x2545

    30T

    45

    Φ2300×4500

    6300x2300x3150

    50T

    50

    Φ3500*5000

    7500x2700x3200


    Note


    The capacity can be adjusted according to user requirement.

    Wall Coating Horizontal Lacquer Mixer Ribbon Agitators With Discharging Part


    Our company has mechanical design, machine manufacturing, and high-level professional technicians.


    we take possession of a strong workforce team who has rich experience in installing and producing with scientific management methods and complete quality assurances system, which guarantee us to finish each project reliably.


    We have good sales markets in North America, Africa, East Europe, East and South Asia and other countries and regions. Honest and trustworthy is our service motto.


    We strengthen communication to our each customer more efficiently and cost-effectively, shortening the reaction time of the market, speeding up technological innovation, carrying out strict quality control and reducing production costs to benefit each client.


    FAQ:

    1. Why choose us?

    A: 1. We have more than 20 years of experience in chemical and plastic machinery.

    2. Our quality is well received by our customers and we offer you a competitive price.

    3. We will always provide a warranty service for machines.

    2. What is the time of delivery?

    A: The delivery time after confirming the cooperation is about 10-15 days, depending on the product.

    3.How about the payment terms?

    A: TT, LC at sight. Western Union, We will make them after you deposit.

    4. What is the factory area needed?

    A: It depends on the line type. 5-10m*m will be enough.

    5. Can you install it in my country?

    A: Yes, we offer an oversea installation service for you need.

    6. Can you teach us how to operate this line?

    A: Yes. We offer a free training service for you.
