Auger 5-50 Kg Powder Bag Filling Machine / Cement Filling Machine Open Mouth

Ask Lasest Price
Brand Name :	Fair Machinery
Model Number :	FMZZ-50FG
Certification :	CE,SGS,ISO
Price :	5000-12000 USD/set
Payment Terms :	T/T, Western Union, MoneyGram, L/C, D/A, D/P,Pyple
Supply Ability :	200-500 sets/month
Delivery Time :	3-7 days

Add to Cart

Product Details
Company Profile

Auger 5-50 Kg Powder Bag Filling Machine / Cement Filling Machine Open Mouth

Auger 5-50 Kg Powder Bag Filling Machine / Cement Filling Machine Open Mouth

River sea sand woven sack bag filling sand packaging machine are used to weighing and packing river sea sand. The weight from 10kg-50kg are available.
The bag can be closed by heat sealing for lining/plastic bags and sewing(thread stitching) for woven bags, paper bags, kraft bags, sacks etc.

Auger 5-50 Kg Powder Bag Filling Machine / Cement Filling Machine Open Mouth

Product Description

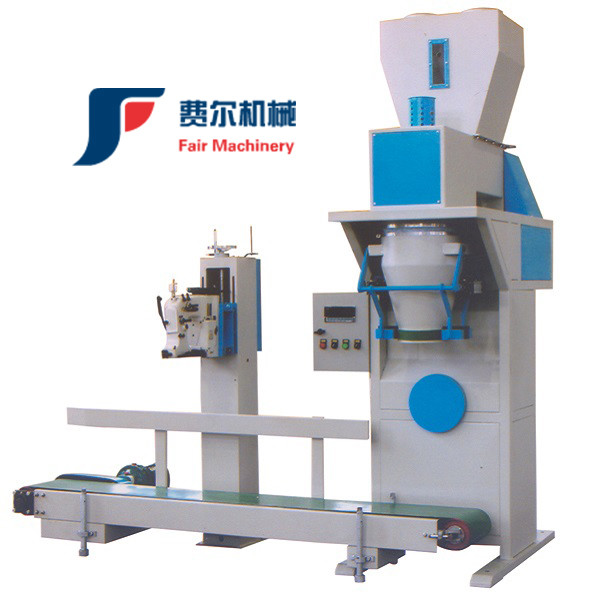

FMZZ-50FG high quality semi automatic open mouth bags cement packing machine

2, Item: FMZZ-50FG

Application materials	powder
Display Resolution	5g, 10g
Weighing Range	5-50kg/bag or customized needs
Precisions	+/-(0.1-0.2)% FS
Packing Capacity	120-180 bags/hour
Dimention(LWHmm)	300012002600mm, the size can be customized according to your site
Power Supply	AC220V/380V, 50HZ, 1P/3P, customized available
Air Source	0.5-0.7 Mpa
Power	3KW
Working Temperature	-10~40 ℃
Relative Humidity	≤90% RH(Non-condesing)

Application

Auger 5-50 Kg Powder Bag Filling Machine / Cement Filling Machine Open Mouth

Application Materials(products)

Screw feeding type packing machine suit for pack powder of any industry,such as flour, starches, lime powder, cement, fertilizer,silica sand powder, nitrate of potash, ammonium sulfate etc

Application Bags(open mouth bags)

This bagging machine is especially designed for pack materials(products) into open mouth bags,such as plastic woven bags,kraft bags,paper-plastic compound bags,sacks,barrel etc

Working Process

Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic discharge-automatic bag loose-automatic conveying-automatic bag closed by sewing/heat sealing

Advantage

+Full touch screen panel
+PLC system
+Photoelectric sensor switch
+English/Chinese view
+Easy operation interface
+Proction data record & print
+Connect computer available

+Famous brand load cell, more stable
+Installed 3pieces load cell, high weighing accuracy

+Dual screw design(coarse screw+fine screw)
+Control by the PLC system and dual motor
+Feeding speed with fast-midium-slow due to the motor frequency change

Automtic Bag Clamp/Loose Mechanism

+Photoelectric sensor switch
+Big force 2pcs air cylinder control
+Automatic bag clamp and loose
+Automatic materials dischage
+Suit for different bag size

+All of our packing machine will install air outlet
+Connect your dust removal device, making the
working environment more hygienic
+Add our pulse dust collector,
dust collection≥99.8%

Automatic Sewing Machine

+Automatic bag top folding device(opitional)
+Photoelectric sensor switch
+Automatic knife thread cut
+Single needle double thread chain
+Production data record & print
+Thread end length ajustable
+Bag sewing heigth adjustable
+With automatic bag conveyor

Package in wooden case

All equipments will package in the wooden case and fixed by the steel,then in the cantainer

Transport by truck

We will transport the machine to Qingdao port(or any port of China you need)by the truck

Ship by the cargo vessel

All machines will in container then ship to the sea port of your country by the boat

Related Products

Item	DCS-50WF	DCS-50F	DCS-50SF
Application materials	Power of any industry
Display Resolution	5g, 10g
Weighing Range	5-50kg/bag or customized
Precisions	+/-(0.1-0.2)% FS
Packing Capacity	120-180 bags/hour	240-360 bags/hour	500-600 bags/hour
Dimention(LWHmm)	300012002600	300012003200	400012003700
Power Supply	AC220V/380V, 50HZ, 1P/3P, customized available
Air Source	0.5-0.7 Mpa
Power	3KW	3KW	6KW
Working Temperature	-10~40 ℃
Relative Humidity	≤90% RH(Non-condesing)

Non weighing hopper screw feeding type packing machine

packing speed 120-180 bags/hour

Single weighing hopper screw

feeding type packing machine
packing speed 240-360 bags/hour

Dual weighing hopper screw feeding type packing machine
packing speed 500-600 bags/hour

About Henan Fair Machinery Co., Ltd

-21 years professional manufacturer of packing machines,sewing/heat sealing machine,automatic palletizer
machine,elevator/conveyor etc
-More than 10 person engineers team,OEM service and customized design are available
-3000㎡ working shop, high production capacity
-Sales and after sales team 24 hours online service

Flowing chart:

Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-testing-packaging and transport-after service

Certificate

We are Gloden Supplier with assessment and the BV certificate, CE certificate and CMC (China Metrology Certification)
