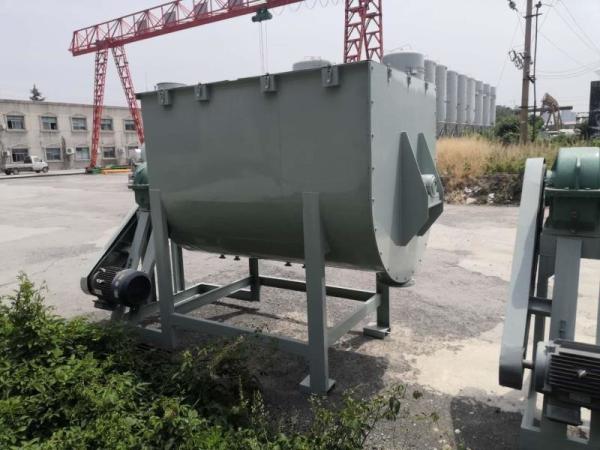

Industrial Dry Powder MixerPlastic Horizontal Ribbon Mixer 200 -
415v Voltage
Horizontal Ribbon Mixer Description
Horizontal Ribbon Mixer is composed of container,screw s tirring
paddles and transitional parts; the screw paddle are generally made
into 1 layer or 3 layers, the outer screw converge is the material
to the centre from two sides, and the inner layer of screw conveys
the material to the two sides from the centre, so as to from
convection mixing.
Horizontal Ribbon Mixer is generalIy used in the mixing of viscous
or adhesive powder material, or the mixing of powder which needs to
add liquid, and paste material.Meanwhile, because it is diffcult to
clean viscous material, the machine is suitable for the mixing
case, where the output is large and there is no need of displacing
material variety frequently .
Features
1. With CE certification
2. High mixing speed and short uniform time. Mixing speed is around
8-20mins.
3. All stainless steel 304 material.
4. Full Mirror polished mixing tank inside, as well as ribbon and
shaft.
5. Safety switch ,safety grid.
6. Castors for easy moving.
7. Technical discharge hole design to guarantee no material
leaking.
Overview:
Model | FMGJ-300 | FMGJ-500 | FMGJ-1000 | FMGJ-2000 | FMGJ-3000 | FMGJ-5000 |
Power(KW) | 3 | 5.5 | 7.5 | 11 | 15 | 18.5 |
Speed(r/min) | 24 | 24 | 24 | 24 | 24 | 24 |
Barrel size (mm) | Φ680×1250 | Φ800×1670 | Φ1050×1880 | Φ1350×2400 | Φ1380*2520 | Φ1600*1510 |
Size L*W*H(mm) | 2100×700×1450 | 2800×810×1780 | 3200×1100×2000 | 3600×1400×2200 | 3625*1480*2370 | 4255*1820*2935 |
Capacity(m³) | 0.45(450L) | 0.85(850L) | 1.8(1800L) | 3.5(3500L) | 5.1 (5100L) | 8.6 (8600L) |
Hoist power(KW) | — | 3 | 3 | 4 | 4 | 5 |
Mixing time(min) | 3-5 | 4-7 | 4-7 | 4-7 | 5–10 | 5–10 |
Daily output(Tons/day) | 3 | 5 | 8 | 12 | 18 | 25 |
Model Number:FMZZ-1T Max. Loading Capacity:3000L Voltage:220V/380V
Additional Capabilities:Coating Place of Origin:Henan, China
(Mainland) Brand Name:Fair Machinery
Type:Ribbon Product Type:Paint Application:Liquid with Suspended
Solids
Power(W):5.5KW Dimension(L*W*H):2140x900x1325mm
Certification:ISO9001,CE
Warranty: 2 Years Capacity:200-5000L Usage:Liquid Treatment
Function:Blending Color:any Material:Stainless Steel
Feature:High Viscosity Material Installation:Guide Name:real stone
paint
After-sales Service Provided: Engineers available to service
machinery overseas Application scope:Building Materials
Condition::New
Packaging & Delivery
Packaging Details
film packed in Container or plywooden case
Delivery Time
Shipped in 10 days after payment
Note
The capacity can be adjusted according to user requirement.
Packaging & Shipping
Terms of price: FOB CIF CFR
Packaging term: nude cargo OR wooden case
Terms of Payment: T/T, L/C AT SIGHT, WEST UNION
Time of delivery: 7 days after receiving deposit
MOQ: 1 SET
Our Services
1. The machine adopts U barrel structure,smooth operation,well
stir,no dead angle,
Discharge clean and widely application range.
2. The machine adopts double screw( internal and external), so it
has a quick mixing speed and high uniformity.
3. The bearing is equipped on both ends of mixer,which is not easy
to jam.
4. The inlet is flush with the ground,which is easy to feed
Working principle of Horizontal Ribbon Mixer
Horizontal ribbon mixer consists of transmission parts, double
ribbon agitators and U-shape cylinder. In the direction of
rotation, the outer ribbon pushes materials from both ends to the
middle, while the inner ribbon pushes materials from the middle to
both ends. Ribbon wind with different angle direction carries the
materials flowing in different directions. Through continuous
convective circulation, the materials are sheared
Horizontal Ribbon Mixer is suitable for mixing materials of powder-powder and power-liquid,
especially for paste,powder and thick materials, such as putty,
stone coatings, metal powders etc.
Food and pharmaceutical industry: flavor, spice, seasoning, flour,
milk powder, coffee, bakery powder, protein powder, medical
intermediate, etc.
Chemical industry: fertilizer, animal feed, fodder, pesticide, putty powder, gypsum powder, dry mortar, dry cement,
colorant, reactive dyes, putty, anticrack sludge, etc.
FAQ:
Q: What is the difference between mass mixer and Ribbon Blender?
A: The biggest difference between mass mixers and ribbon blenders
is the material.
Fier mass mixer is All stainless steel is used for contacting
materials, but ribbon mixer is usually used carbon steel
Q: Can you tell me the quality of your mess mixer?
A: Our equipment is guaranteed for one year, and we can provide you
with spare parts free of charge.
Q: How can I know your mess mixer fits me?
A: You can send your materials to us, we will do the test, and send
the test results to you via video.
Q: Can you provide installation instructions?
A: Yes, we will provide you with free training, and engineers can
be sent to your country for on-site guidance according to your
needs.
