Double Horizontal Dry Powder Mixer 4 Party Twin Shaft Paddle Mixer Powder Mixing

Ask Lasest Price
Brand Name :	Fair Machinery
Model Number :	FMZZ-2T
Certification :	ISO9001:2008 CE
Price :
Payment Terms :	T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :	1000sets/month

Add to Cart

Product Details
Company Profile

Double Horizontal Dry Powder Mixer 4 Party Twin Shaft Paddle Mixer Powder Mixing

Double Horizontal Dry Powder Mixer 4 Party Twin Shaft Paddle Mixer Powder Mixing

Fier twin shaft mixer is the dry powder mixing station, dry mortar production line equipment, and concrete batching plant in the most important part of the whole set of equipment, the mixing system is completely dominated by it.
And also often seen in feed mills and compound fertilizer factories
It Mixing time is about 0.5-3 minutes (batch every 90 seconds), mixing uniformity Cv≤2%, and can be equipped with liquid adding system;
The discharging door adopts a gate-type door, discharging is clean and quick, with less residue.

The features of FIER Twin shaft mixer
1. Wide application: widely used in mixing powdery, granular, flaky, miscellaneous and viscous materials in feed, grain, chemical, pharmaceutical and pesticide industries;
2. Short mixing cycle and high mixing uniformity: the mixing uniformity CV of general materials within 50-90s is ≤5%, which reduces the mixing time and improves the production efficiency of feed mill;
3. Large variable loading range: the variable loading coefficient range is 0.3 ~ 0.8, suitable for mixing with materials of different specific gravity and particle size in many industries;
4, mixing does not produce segregation: after mixing evenly within 1 minute, the machine will continue mixing materials without grading phenomenon, and will not produce segregation due to the large difference in specific gravity, particle size and other physical properties, also known as weightless mixer;
5. Quick discharging and small residual amount: the bottom adopts four-door structure, discharging quickly and leaving little residue;
6. Large amount of liquid: adding 30% liquid can still mix the material evenly, that is, it can mix the viscous material;
7. Unique chain tensioning mechanism is adopted to make installation, disassembly and adjustment fast and convenient;
8. Reliable discharge door seal: The discharge door adopts airbag seal, which is reliable, long service life and easy to replace;
9. Convenient installation, disassembly, and maintenance: FIER twin shaft mixer design is W type mixing room, built-in air duct, integral machine stand, side access door, beautiful appearance.
Double Horizontal Dry Powder Mixer 4 Party Twin Shaft Paddle Mixer Powder Mixing

2. Technical Parameters of Fier industrial mixer

Type(FMZZ-)	Power(kw)	Cylinder size(mm)	Dimension (mm) LWH
1T	5.5	Φ850×1250	2140x900x1325
2T	7.5	Φ1050×1875	2940x1300x1800
3T	11	Φ1050×3530	3315x1300x1800
5T	15	Φ1400×2500	3850x1700x2240
10T	22	Φ1600×3000	4400x1700x2560
15T	30	Φ1600×4200	5250x1850x2600
20T	37	Φ1850×4300	6250x1900x2545
30T	45	Φ2300×4500	6300x2300x3150
50T	50	Φ3500*5000	7500x2700x3200

Features and advantages:

◆ Fast mixing speed, mixing time of each batch: 0.5-2.5min;
◆ Fier Twin-shaft mixer not easy to produce segregation when mixing materials with different physical properties such as specific gravity, particle size and shape;
◆ High mixing uniformity, coefficient of variation CV ≤ 5%;
◆ Large variable filling range: 0.4-0.8;
◆ The liquid can be added in a wide range, with the maximum amount up to 20%;
◆ Low power consumption, 60% lower than ordinary horizontal screw belt mixer;
◆ Wide range of application, according to the needs of users to adopt carbon steel, semi-stainless steel, stainless steel, especially suitable for mixed production of materials.

Double Horizontal Dry Powder Mixer 4 Party Twin Shaft Paddle Mixer Powder Mixing

The working principle of Fair Twin shaft mixer

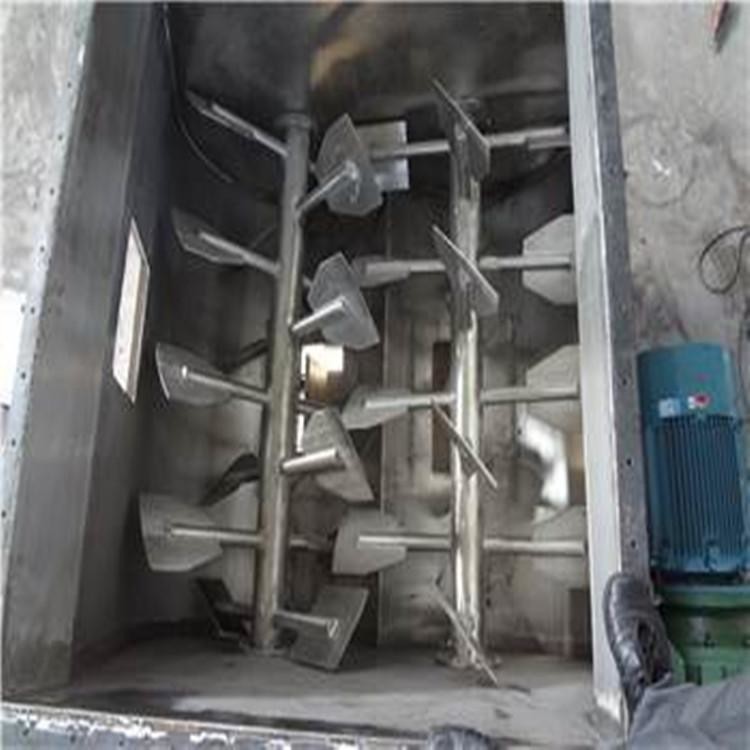

The horizontal cylinder body is equipped with a biaxial rotating reverse pulp blade.
It circulates and turns the material at a certain angle to make the material quickly mixed evenly.
The discharging form is generally pneumatic (manual) flap valve, no material accumulation and mixing dead Angle phenomenon;
The standard type can be divided into a big door and a small door. The big door can be opened to the side of the tube side, Quick and clean discharge, less residue

Fier twin shaft mixer maintenance
1. Full load startup is not allowed, and the loading quantity is strictly controlled within 0.4-0.6. If the material is too heavy, the machine will run while feeding.

2. Reducer: new oil should be replaced after the first refueling operation for two weeks, and it can be replaced every 3-6 months in the future. The oil stored in the reducer body should not be too much or too little
3. Bearing: Grease is injected through grease hole once a month
4. Packing seal: In case of powder leakage in the box, please tighten the four bolts on the gland of the packing box, subject to leakage. Do not press too tight.
5. When replacing the chain, the red line of the sprockets on the two axes shall be aligned horizontally and shall not be misplaced.
6. When the Fier Twin-shaft mixer is powered on, the two spindles should be operated in accordance with the direction of the indicated arrow on the equipment without reversing.
