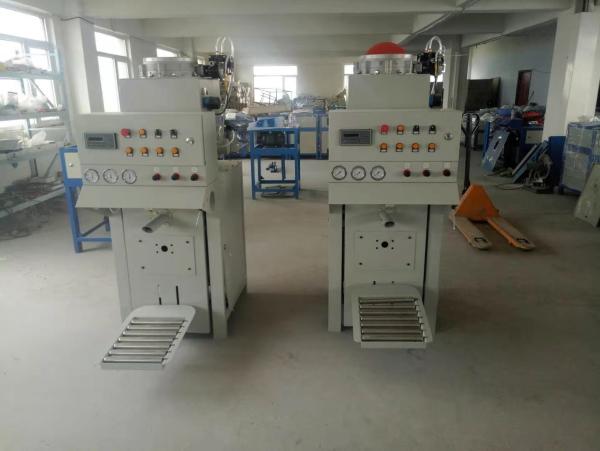

250-300 Bags / Hour Valve Bag Filling Machine For Ultra Fine Powder

Ask Lasest Price
Brand Name :	Fair Machinery
Model Number :	FMZZ-50FG
Certification :	CE,SGS,ISO
Payment Terms :	T/T, Western Union, MoneyGram, L/C, D/A, D/P,Pyple
Supply Ability :	200-500 sets/month
Delivery Time :	3-7 days

Add to Cart

Product Details
Company Profile

250-300 Bags / Hour Valve Bag Filling Machine For Ultra Fine Powder

250-300 Bags / Hour Valve Bag Filling Machine For Ultra Fine Powder

Introduction of Valve Bag Filling Machine:

Valve Bag Filling Machine with the improved model of the latest development ,different from other factory production. We improve its most precise measurement sensing system, changed the way of lifting force sensor, the industry generally used, to the pressure sensing mode, making the packing machine life and accuracy greatly improved, Bag weight error from the original error of ± 0.5-1kg reach ± 0.25kg.

Valve Bag Filling Machine advantages:

microcomputer control, parameters can be adjusted, the error can be automatically corrected;
Easy to use, not limited by the production site;
Good anti-corrosion performance, Protect the material from contamination;
The part in contact with the material is made of 316L stainless steel, which conforms to the medical packaging standards.
automatic error correction, out-of-tolerance alarm,
material level control, automatic material cleaning,
electronic balance overload protection, counting, and other functions.

Application materials	powder
Display Resolution	5g, 10g
Weighing Range	5-50kg/bag or customized needs
Precisions	+/-(0.1-0.2)% FS
Packing Capacity	120-180 bags/hour
Dimention(LWHmm)	300012002600mm, the size can be customized according to your site
Power Supply	AC220V/380V, 50HZ, 1P/3P, customized available
Air Source	0.5-0.7 Mpa
Power	3KW
Working Temperature	-10~40 ℃
Relative Humidity	≤90% RH(Non-condesing)

250-300 Bags / Hour Valve Bag Filling Machine For Ultra Fine Powder

Valve Bag Filling Machine Technical parameters:

1. Many industries use valve bags to distribute their products, which are filled by commercial valve bag packers.
2. The function of the valve bag packer is to accurately meter out the required amount of product into the bag in an efficient manner.
3. Valve bag packers are used in a variety of industries that package dry, bulk solid powders and granular products.
4. Some common products are cement, grout, fertilizer, flour, grains, refractory mixes, and sugar.
