Professional Paint Dispersion Equipment , Durable Liquid Mixer And Paint Stirrer

Ask Lasest Price
Brand Name :	Fair Machinery
Model Number :	FM-JX
Certification :	CE,ISO
Price :	1180-2680 usd/set
Payment Terms :	T/T, Western Union, MoneyGram, L/C, D/A, D/P,Pyple
Supply Ability :	690-810 sets/month
Delivery Time :	3-7 work days

Add to Cart

Product Details
Company Profile

Professional Paint Dispersion Equipment , Durable Liquid Mixer And Paint Stirrer

Professional Paint Dispersion Equipment , Durable Liquid Mixer And Paint Stirrer

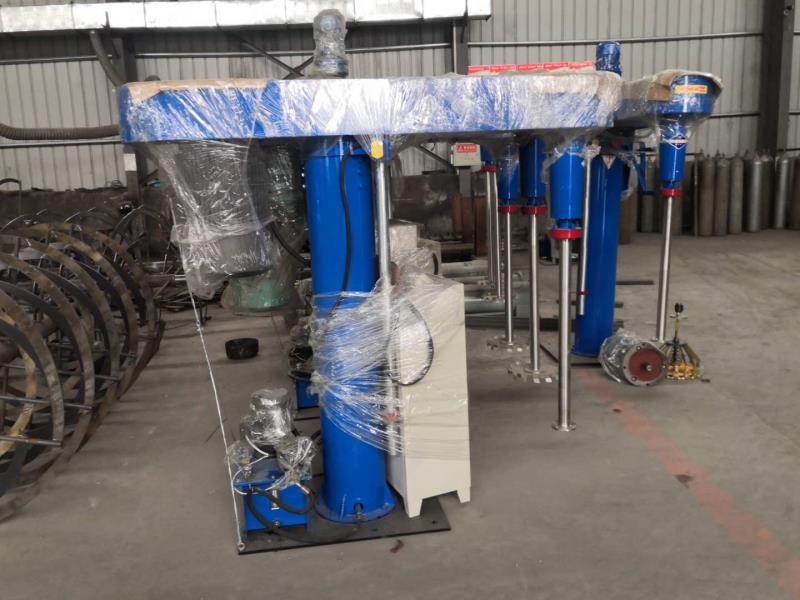

Description of Fair high speed disperser :

Model: mechanical lift, hydraulic lift

Mixer shaft: single shaft, double shaft

Motor power:1.1KW-45KW

Material:SUS304 stainless steel / SUS316L staineless steel

Stepless frequency converter supplies various rotation rate for different grinding material

Ex-proof system can be customized as requirement

Holding clamp: device can be set for the vessel as per your need.

Mixing tank: custom-made Including single layer& double jacket(with cooling, heating, vacuum system or not) open-top type, sealed type; flat-bottom, round-bottom, cone-bottom; flat lid, round lid etc..

Technical parameters:

Product number	2.2kw	4 kw	5.5 kw	7.5 kw	11 kw	15 kw	18.5 kw	22 kw	30 kw
Main motor power (kw)	2.2	4	5.5	7.5	11	15	18.5	22	30
Impeller speed	0--1400
Dispersion plate diameter (mm)	150-200		260		280--300		360		400
Lifting stroke(mm)	900		1000		1100
Installation height(mm)	3100						3500
Dimensions (mm)	15006002100						18009002200

Main Features
1.One machine with multi-vessels,stable capability
2.Hydraulic lifting
3.With electric or manual steering system, easy and convenient to steer the headstock.
4.The adjustable working position enable the machine to work with several tanks, which enhances the machine usage rate greatly, reduce equipment investment and save space.Easy to operate and clean
5.Various speed control
6.Low noise and long-time continuous operation.
7. Siemens or ABB motor for you and Siemens/Emerson Frequency inverter available
8. Non explosion-proof and explosion-proof type of production dispersing equipment are both as standard
9. Vacuum production high speed disperser is available.
10.Little air absorption during mixing and dispersing process makes it disperses and dissolves materials to smaller particle size efficiently .
11.Customized equipments are available.

Henan Fair Machinery Factory is engaged in Chemical Machine Equipment of professional manufacturer. Relying on strong technical force, high-quality management team, professional technical person, good team spirits and best after-sales service in the field of integrated business. It has been specialized in developing paint, coating, ink, resin, cosmetic, agricultural chemicals, food, paper and other fine chemical industry. And it’s widely used in grinding, mixing, dispersion, reaction, kneading, emulsifying, filtering and so on (more than ten series of equipment manufacturing). In addition, we can develop new products according to the different customer’s requirements. Reliable quality, best-selling throughout the world, and praised by our customers.

Our principle is based on Science and Technology and Innovation---Creat Fair Brand. And we can meet your request at most favorable price and best quality.

FAQ

About Delivery time
Q-----What's the delivery term for making business with us?
A-----Usually we send the shipment in FOB term.However, the terms of CIF are acceptable which depend on the preference of clients.

About Lead Time
Q------What's the lead time after placing the order?
A------Usually it takes about 15~30 days after we received your confirmation.
However, it would depend on our production line schedule(the timing clients place order)and the complication of the item.

About Payment Term
Q------What's the Payment Term?
A------By T/T in Advance, or Irrevocable L/C as Sight.
