Feed Mill Mixer Grinder 1500kg/H Impact Pulverizer Machine For
Poultry
Fier Impact Pulverizer machine intrduction:
You can avail from us both the range of ordinary and Impact
Pulverizer, which isused to grind all types of spices, animal feed,
medicines, and poultry feed. A mechanical device, these machines
can grind any types of herbs, spices or any hard material into
small particles. In addition, we offer cold spices pulverizers that
can function without foundation as the motor installed in the
machines can be operated with the help of a counter shaft.
Fier feed mill machine is Specialized in light body materials,
fiber materials, brittle materials, ductile materials, and another
special difficult grinding of new poultry feed mill equipment.
We can supply you with a competitive price with SGS, CE, ISO
certificates. and give the best solution for your feed mill machine
order.
FAIR Impact Pulverizer Machine Technical parameters:
| Moder : FMSM- | Water-cooling 500 type | Water-cooling 800 type | Water-cooling 900 type |
| Rotary speed of principal machine (r/min) | 2900 | 4000 | 4000 |
| Motor of principal machine (Kw) | 18.5 | 22-30 | 45 |
| Motor of blower fan (Kw) | 4 | 4 | 4 |
| Output(Kg) | 60-300 | 120-500 | 150-600 |
| Length,width and height of land occupied (m) | 5×2×4.5 | 5×2.6×4.5 | 5×2.9×4.5 |
Fier impact pulveriser feed mill for sale:
Fier Feed mill machine adopts the roller to screen the material,
the fineness of the finished product is more even, the pulverizer
is fully closed operation, and the dust collector is configured to
meet the requirements of environmental protection.
The machine has the function of cooling, especially suitable for
processing thermoplastic, fibrous material, suitable for chemical
industry, medicine, spices, pigments, dye, feed, plastics, carbon
black, catalyst, aluminum hydroxide, alumina, talc, mica, graphite,
AC foaming agent, petroleum coke, pesticide, paint, flame
retardants, electronic materials, rubber, metallurgy, ceramics,
food, building materials, iron ore, cement, refractories, inorganic
mineral, such as grains, smash the ideal equipment.
Advantages and Features of Fier Industrial impact pulverizer
machine
- Low Power Consumption
- Low maintenance cost
- Automatic feeder
- High grinding Efficiency
- Quality fineness control
- Dust Proof
- Select fineness according to customer’s requirement, with fineness
analyzer, the fineness of materials can be controlled at will.;
- Introduce high yield from Germany and reduce uneven manual feeding;
- Reasonable design, low loss, low noise, no pollution, easy to
operate.
- High yield, more than 50 times more efficient than the traditional
wood flour mill
Applicable Scope:
Fier Impact pulverizer machine is suitable for the crushing and
processing of all light body materials, fiber materials, brittle
materials and ductile materials, such as bamboo powder, wood chips,
bark, shrimping, spices, feathers, feather stalks, straw, wheat
bran, rice husk, ballast, cassava, cake, magnesium silicate, etc.
Fier Pulverizing machine Is bakelite, plastic, paper,
mosquito-repellent incense, sanitary incense, feed, Chinese herbal
medicine, culture, and other industries indispensable crushing
equipment.
Workflow and Precautions of Fier Impact pulverizer machine
- The Impact Pulverizer consists of and encased rotor-carrying swing
hammers, whizzer classifier for finesse regulation and pressure
gradient creator mounted on a solid shaft.
- Raw material from the feed hopper enters manually or automatically
roll feeder and as the feeder and as the feeder pockets rotate
spills into the grinding chamber.
- The impact to the hammers on the feed material against the liner
plates reduces it into fine powder.
- The ground material is carried towards the whizzer classifier for
clarification and the over size particles are rejected by the
finesse regulators (whizzer classifier) and returns to the grinding
chamber for further grinding.

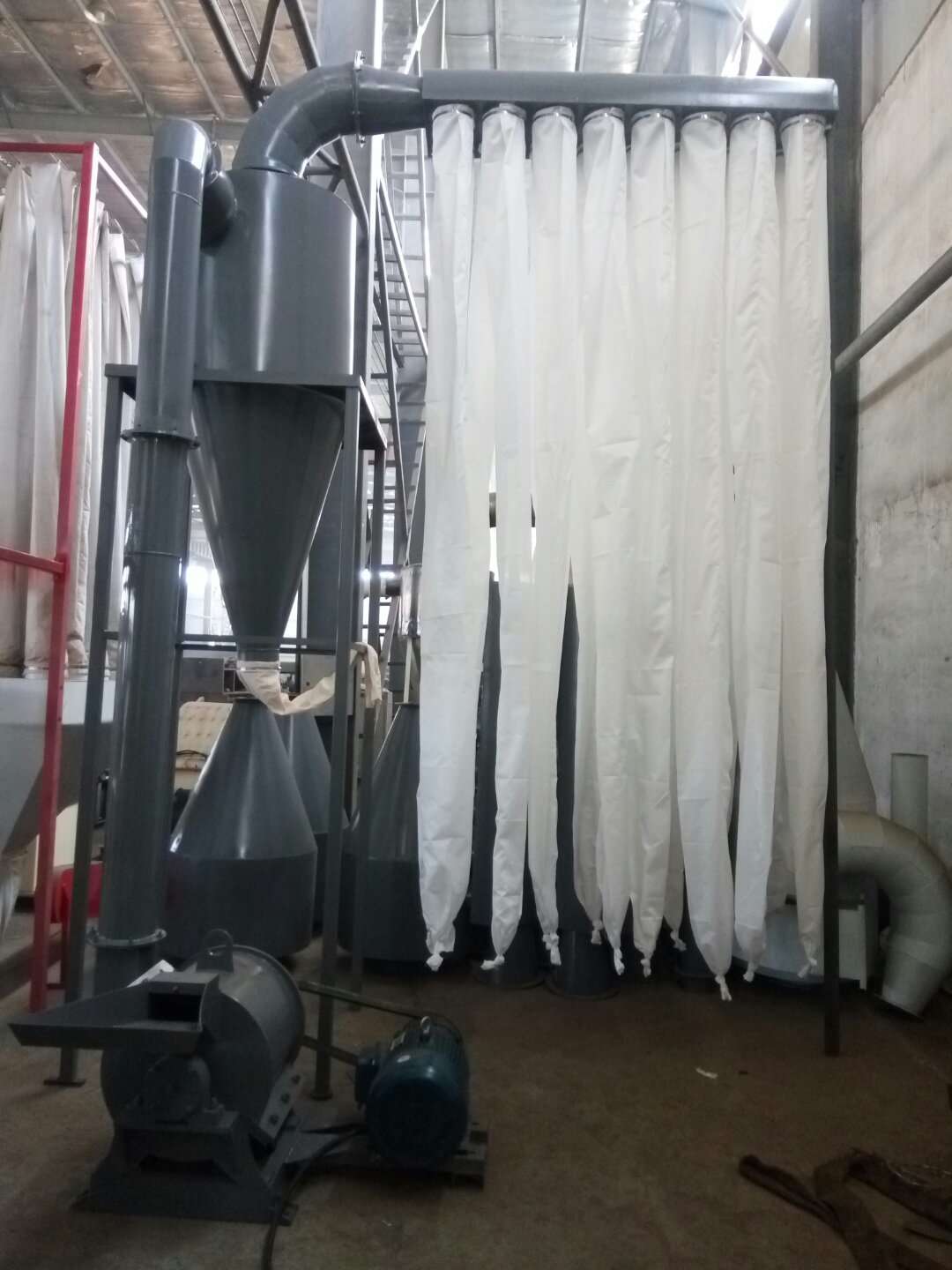

- Classified material is then conveyed into the cyclone for
collection and bagging.
- A dust collector is provided in the system for ensuring dustless
operation and no loss of ground powder.
FAQ:
How about the quality of your product?
-- Our products manufactured strictly according to national and
international standard.
-- We have CE ,ISO certification
-- We take a test on every product before delivery.
How about price of this product?
-- We can give the lowest price than market one.
-- We do quotation as soon as possible for any customer.
-- Discount can be given according to quantity.
What is the MOQ?
-- 1 set.
If you can be custom-made?
-- We can make products according to customer's requirements
Other information:
The ordinary pulverizers uses different types of sieves
The impact pulverizers does not use any sieve but offer fine powder
The impact pulverizers can be offered with heavy plate bearing to
enhance the functionality of the range
