Single / Double Toggle Jaw Crusher Machine 600x900 90-180TPH
Introduction of Single / Double Toggle Jaw Crusher Machine
1) Simple structure, convenient in use and maintenance. Stable
performance, low operation cost, high crushing ratio.
2) Crushing cavity depth and no blind spot, increasing the feeding
ability and capacity.
3) High crushing ratio, uniform product size.
4) Gasket type discharging mouth adjusting device, reliable,
convenient and the adjustingrange is big, increase the flexibility
of the equipment.
5) Lubricationsystem safe and reliable, easy to parts replacement,
small maintenance workload.
Single / Double Toggle Jaw Crusher Machine size and capacity as follow:
Model | Material size(mm) | Destrage size(mm) | Outpurt(t/h) | Power(kw) | Weight(t) | Size |
FMP150x250 | 125 | 10-40 | 1-3 | 5.5 | 0.8 | 720x660x850 |
FMP200x300 | 180 | 15-50 | 2-6 | 7.5 | 1.2 | 910x750x990 |
FMP200x350 | 180 | 18-70 | 3-10 | 11 | 1.5 | 1000x870x990 |
FMP250×400 | 210 | 20-60 | 5-20 | 15 | 2.8 | 1300×1090×1270 |
FMP400×600 | 340 | 40-100 | 16-60 | 30 | 7 | 1730×1730×1630 |
FMP500×750 | 425 | 50-100 | 40-110 | 55 | 12 | 1980×2080×1870 |
FMP600×900 | 500 | 65-160 | 90-180 | 55 | 17 | 2190×2206×2300 |
FMP750×1060 | 630 | 80-140 | 110-320 | 110 | 29 | 2660×2430×2800 |
FMP800×1060 | 640 | 80-150 | 130-330 | 110 | 29.8 | 2710×2430×2800 |
FMP900×1060 | 685 | 80-150 | 230-390 | 110 | 33 | 2870×2420×2940 |
FMP900×1200 | 750 | 95-165 | 220-450 | 110-132 | 58 | 3380×2870×3330 |
FMP1000×1200 | 850 | 195-265 | 315-500 | 110-160 | 69 | 3480×2876×333 |
FMP1200×1500 | 1020 | 150-300 | 400-800 | 160-220 | 100.9 | 4200×3300×3500 |
Working principle of Single / Double Toggle Jaw Crusher Machine
The crushing mode of FIER jaw crusher is flexural extrusion type.
1. The motor drives the belt and pulley, which move the jaw up and
down through an eccentric shaft.
2. When the movable jaw rises, the Angle between the bracket and
the movable jaw increases, thus pushing the movable jaw towards the
fixed jaw.
At the same time, the material is crushed, rubbed, crushed, and so
on.
3. When the movable jaw descends, the Angle between the bracket and
the movable jaw becomes smaller, and the movable jaw leaves the
fixed jaw under the action of pull rod and spring.
4. At this time, the broken material is discharged from the lower
mouth of the crushing chamber. With the continuous rotation of the
motor, the broken motor jaw is used for periodic crushing and
discharging to achieve mass production.
Types of Fier Jaw crusher
Fier jaw crusher is the leader of the crusher machine.
1. According to the size type of materials, it can be divided into
coarse jaw crusher and thin jaw crusher.
The coarse type is the crushing of large materials into small ones.
Fier thin jaw crusher is mainly broken stone cobble.
2. According to the frame structure, the FIER Jaw crusher is
divided into two types: welded type and assembled type.
Small and medium-sized specifications generally use welding type,
large specifications generally use assembly type.
The welding type has the characteristics of impact resistance,
uniform stress, and low failure rate.
Assembly type jaw crusher Equipped with advanced modular, weldless
frame structure design, fatigue strength, high reliability, and the
whole machine equipped with design, transport, installation is more
convenient, especially suitable for underground mines,
high-altitude mines, and other small, difficult places to install.
3. According to whether there is electricity, it can be divided
into the electric type and diesel type
The power type has a wide range of use.

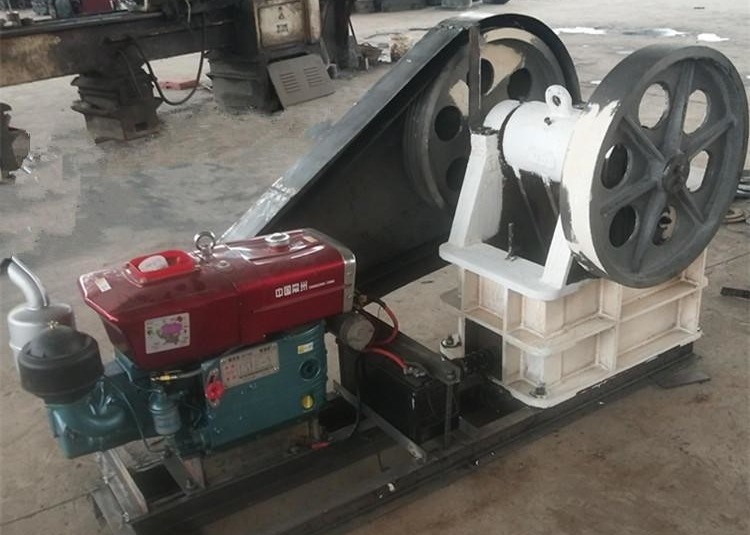

The diesel-powered type is used in areas where electricity is
inconvenient.
4. Mobile jaw crusher and stationary crusher machine
Why us?
1. Complete stone production line, the Crusher near to turn-key
project;
2. Stationary type or mobile type for choosing
3. First class workmanship.Reliable quality with CE approved,
reaching to European standard
4. Updating in design and function year by year, Invention
technical patent. Forms our own unique design by considering of
saving more cost and improve the processing capacity for user’s
consideration.
