Automatic Three Phase Hammer Type Micro Impact Pulverizer Machine
Grinding Machine
Fier Impact Pulverizer machine intrduction:
You can avail from us both the range of ordinary and Impact
Pulverizer, which isused to grind all types of spices, animal feed,
medicines, and poultry feed. A mechanical device, these machines
can grind any types of herbs, spices or any hard material into
small particles. In addition, we offer cold spices pulverizers that
can function without foundation as the motor installed in the
machines can be operated with the help of a counter shaft.
FAIR Impact Pulverizer Machine Technical parameters:
Moder : FMSM- | Water-cooling 500 type | Water-cooling 800 type | Water-cooling 900 type |
Rotary speed of principal machine (r/min) | 2900 | 2900 | 2900 |
Motor of principal machine (Kw) | 18.5 | 22-30 | 45 |
Motor of blower fan (Kw) | 4 | 4 | 4 |
Output(Kg) | 60-300 | 120-500 | 150-600 |
Length,width and height of land occupied (m) | 5×2×4.5 | 5×2.6×4.5 | 5×2.9×4.5 |
Fier impact pulveriser working principle:
1. Materials are manually invested, and then the motor drives the
rotor of the pulverizer grinding machine to run at high speed.
2. The high-speed airflow generated by the Fier pulverizer machine
produces high impact force, compression force, cutting force, and
friction force on the crushed material. To achieve a unique
crushing function.
3. In the process of cutting and crushing, the rotor produces a
high-velocity airflow which rotates in the direction of the blade.
The material is accelerated and repeatedly impacted and subjected
to cutting friction in the air stream.
4. The crushed material enters the analyzer with the airflow for
analysis,
Due to the centrifugal force of the rotor of the analyzer and the
centripetal force of the airflow,
5. Therefore, when the centrifugal force is greater than the
centripetal force, fine particles will be collected with the
airflow into the powder collector.
6. The coarse particles go into the centrifuge to be further
crushed in the crushing chamber until they reach the desired
fineness.
Advantages and Features of Fier Industrial impact pulverizer
machine
Low Power Consumption
Low maintenance cost
Automatic feeder
High grinding Efficiency
Quality fineness control
Dust Proof
Select fineness according to customer’s requirement, with fineness
analyzer, the fineness of materials can be controlled at will.;
Introduce high yield from Germany and reduce uneven manual feeding;
Reasonable design, low loss, low noise, no pollution, easy to
operate.
High yield, more than 50 times more efficient than the traditional
wood flour mill
Applicable Scope:
Fier Impact pulverizer machine is suitable for the crushing and
processing of all light body materials, fiber materials, brittle
materials and ductile materials, such as bamboo powder, wood chips,
bark, shrimping, spices, feathers, feather stalks, straw, wheat
bran, rice husk, ballast, cassava, cake, magnesium silicate, etc.
Fier Pulverizing machine Is bakelite, plastic, paper,
mosquito-repellent incense, sanitary incense, feed, Chinese herbal
medicine, culture, and other industries indispensable crushing
equipment.
Workflow and Precautions of Fier Impact pulverizer machine
The Impact Pulverizer consists of and encased rotor-carrying swing
hammers, whizzer classifier for finesse regulation and pressure
gradient creator mounted on a solid shaft.
Raw material from the feed hopper enters manually or automatically
roll feeder and as the feeder and as the feeder pockets rotate
spills into the grinding chamber.
The impact to the hammers on the feed material against the liner
plates reduces it into fine powder.
The ground material is carried towards the whizzer classifier for
clarification and the over size particles are rejected by the
finesse regulators (whizzer classifier) and returns to the grinding
chamber for further grinding.

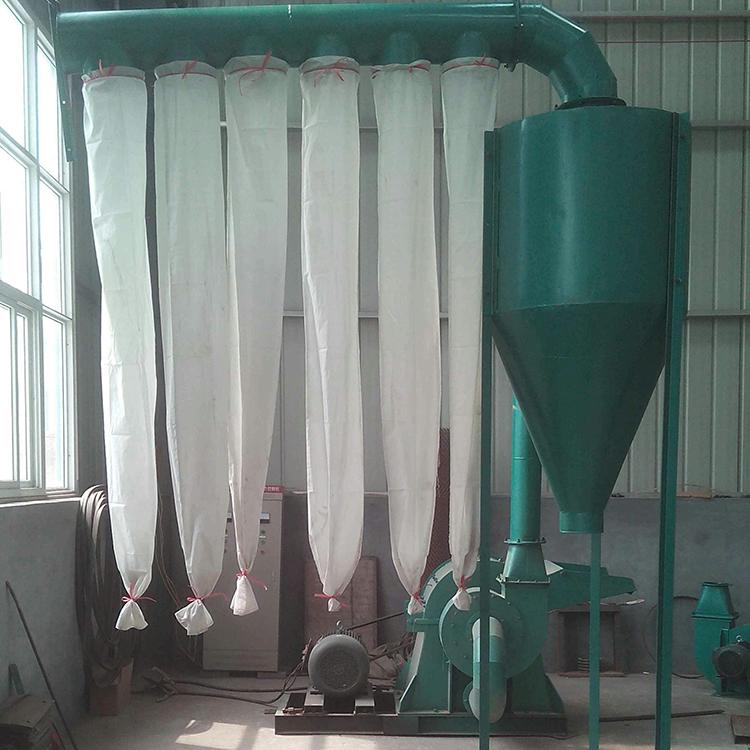

Classified material is then conveyed into the cyclone for
collection and bagging.
A dust collector is provided in the system for ensuring dustless
operation and no loss of ground powder.
FAQ:
Q: There are too many types of machines for choice, I don't know
how to choose the fittest.
A: If you plan to buy machines, please contact me and tell us the
detail requirements about the machine you need, and we will give
you a good recommendation according to your requirements.
What mesh or mm or micron(size) of the powder you want?
What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p;
220V...
(We only provide 3P, because our machines are all for industrial
use,not for family.)
Other information:
The ordinary pulverizers uses different types of sieves
The impact pulverizers does not use any sieve but offer fine powder
The impact pulverizers can be offered with heavy plate bearing to
enhance the functionality of the range
