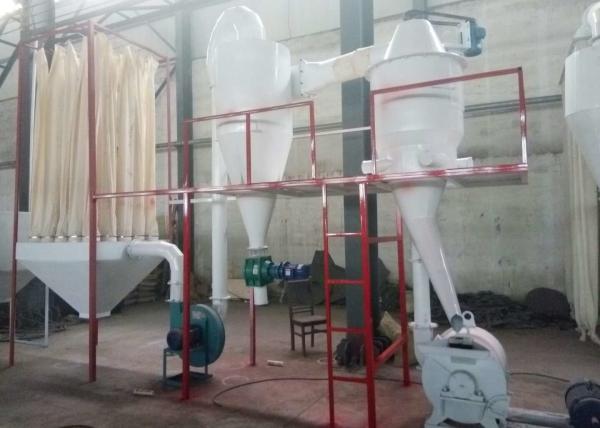

350 Mesh Impact Pulverizer Machine For Rock Sawdust Rice Husk Sugar
Powder
Impact Pulverizer Machine working principle:
1. Materials are manually invested, and then the motor drives the
rotor of the pulverizer grinding machine to run at high speed.
2. The high-speed airflow generated by the Fier pulverizer machine
produces high impact force, compression force, cutting force, and
friction force on the crushed material. To achieve a unique
crushing function.
3. In the process of cutting and crushing, the rotor produces a
high-velocity airflow which rotates in the direction of the blade.
The material is accelerated and repeatedly impacted and subjected
to cutting friction in the air stream.
4. The crushed material enters the analyzer with the airflow for
analysis,
Due to the centrifugal force of the rotor of the analyzer and the
centripetal force of the airflow,
Impact Pulverizer Machine Technical parameters:
Moder : FMSM- | Water-cooling 800 type | Water-cooling 900 type |
Rotary speed of principal machine (r/min) | 2900 | 2900 |
Motor of principal machine (Kw) | 22-30 | 45 |
Motor of blower fan (Kw) | 4 | 4 |
Output(Kg) | 120-500 | 150-600 |
Length,width and height of land occupied (m) | 5×2.6×4.5 | 5×2.9×4.5 |
Advantages and Features of Fier Industrial impact pulverizer
machine
1. Double-layer body to achieve continuous operation and reduce
grinding worries of some materials;
2. Multiple types and complete, providing customers with a wealth
of options;
3. Changed the disadvantages of the traditional powder processing
equipment, realized the no-screen bottom processing, and solved the
inconvenience caused by the uneven fineness of the finished
products;
4. Select fineness according to customer’s requirement, with
fineness analyzer, the fineness of materials can be controlled at
will.;
5. Introduce high yield from Germany and reduce uneven manual
feeding;
Applicable Scope of Impact Pulverizer Machine :
Fier Impact pulverizer machine is suitable for the crushing and
processing of all light body materials, fiber materials, brittle
materials and ductile materials, such as bamboo powder, wood chips,
bark, shrimping, spices, feathers, feather stalks, straw, wheat
bran, rice husk, ballast, cassava, cake, magnesium silicate, etc.
Fier Pulverizing machine Is bakelite, plastic, paper,
mosquito-repellent incense, sanitary incense, feed, Chinese herbal
medicine, culture, and other industries indispensable crushing
equipment.
FAQ:
Q: There are too many types of machines for choice, I don't know
how to choose the fittest.
A: If you plan to buy machines, please contact me and tell us the
detail requirements about the machine you need, and we will give
you a good recommendation according to your requirements.
What mesh or mm or micron(size) of the powder you want?
What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p;
220V...
(We only provide 3P, because our machines are all for industrial
use,not for family.)
