U Type Stone Paint Ribbon Mixer Machine Multi Layer Spiral Belt Carbon Steel

Ask Lasest Price
Brand Name :	Fair Machinery
Model Number :	FMZZ-2T
Certification :	CE, ISO
Price :	3000-35000 USD/set
Payment Terms :	T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :	1000sets/month

Add to Cart

Product Details
Company Profile

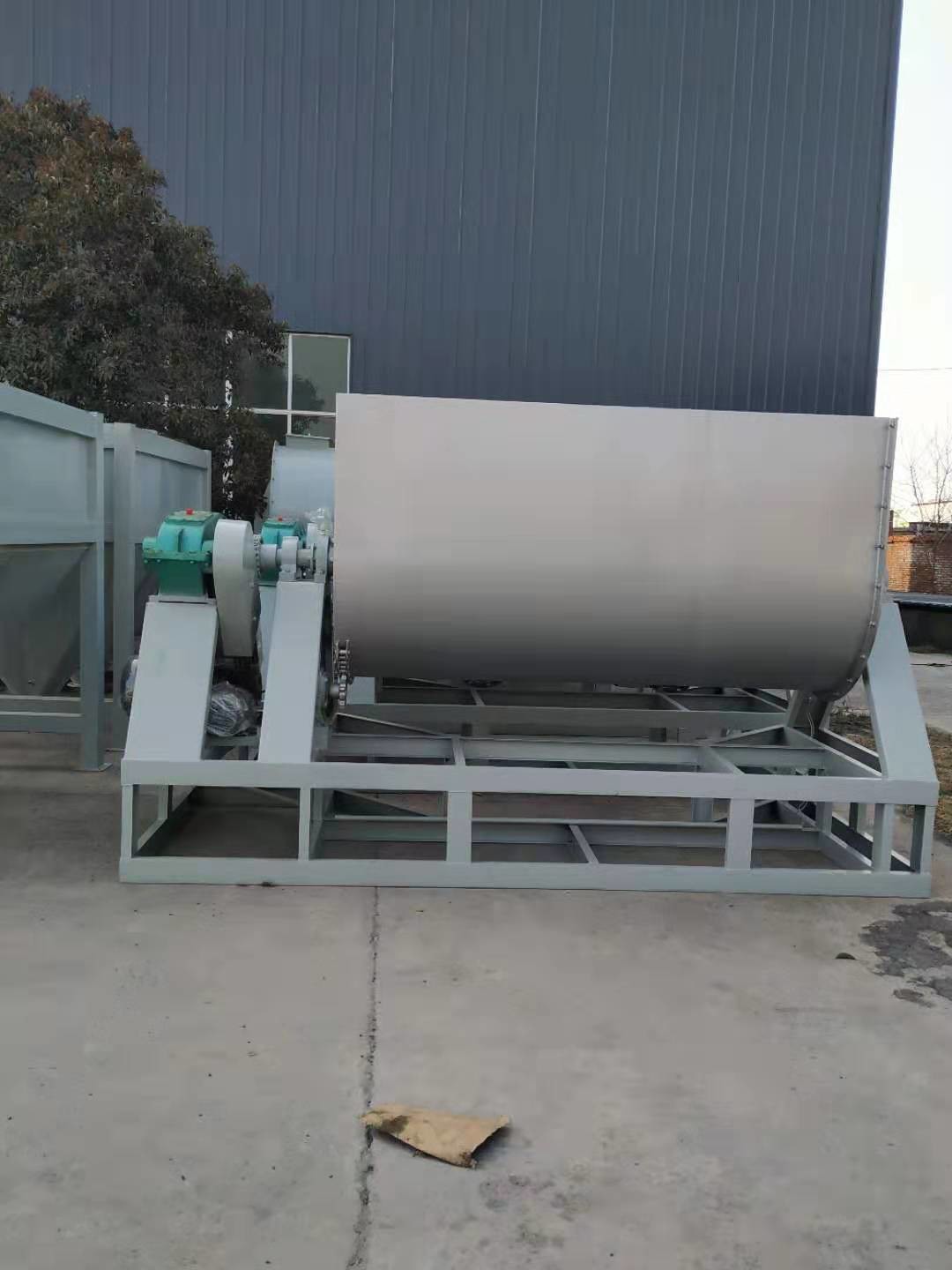

U Type Stone Paint Ribbon Mixer Machine Multi Layer Spiral Belt Carbon Steel

U Type Stone Paint Ribbon Mixer Machine Multi Layer Spiral Belt

Ribbon Mixer Machine is used in powder and paste paint putty powder mixing. it is a multi-functional dry wet amphibious mixing blender first made in China. It is suitable for building chemical, food,medicine, plastic industry and so on.

Product Description of Ribbon Mixer Machine

1. Road marking paint mixing equipment is fast speed mixing , stir with multi-layer spiral belt , overall movement of materials, high speed and high yield, the average mixing time is 5-10 minutes.

2. Multi-usage, can produce solvent at room temperature, heating solvent traffic coatings road marking paint, hot melt type reflective road marking paint, spike type vibration reflective marking paint, water-based reflective road marking paint, etc

3. Low maintenance rate, bearing on both ends of the mixer, materials are not easy to enter, equipped with reducer and maintenance rate.

4. High mixing uniformity, multidirectional movement of materials, multi-layer spiral belt, stirring without dead Angle, high uniformity and good quality;

5. Small footprint, automatic feeding device, improve work efficiency.

6. U-type/O type tube structure, stable operation, low noise, long service life and wide application scope;

7. Use the inner and outer layers of the inner shell to bring back stirring, no dead Angle, fast mixing speed and high evenness;

8. The marking paint mixer adopts the screw lifting/gladiator to raise the material, the feeding port and the ground level are smooth, the feed is convenient;

U Type Stone Paint Ribbon Mixer Machine Multi Layer Spiral Belt Carbon Steel

2. Technical Parameters of powder ribbon mixer

Model	Main material	Size (LWH)	Power (kw)	Rotating speed (r/min)	Batch capacity (ton/time)
1000	304, 201 stainless steel	20.881.7	5.5kw	28-30	1 ton
3000	304, 201 stainless steel	2.811.8	11kw	50-60	3 ton
5000	304, 201 stainless steel	3.41.22.1	15kw	28-30	5 ton
10000	304, 201 stainless steel	41.42.1	22kw	30-40	10 ton
15000	304, 201 stainless steel	31.82.4	37KW	28-30	15 ton
20000	304, 201 stainless steel	4.91.83	37KW	28-30	20 ton
25000	304, 201 stainless steel	5.423.2	37KW	28-30	25 ton
30000	304, 201 stainless steel	6.22.353.35	37KW	28-30	30 ton

The capacity can be adjusted according to user requirement.

Packaging & Shipping

Terms of price: FOB CIF CFR

Packaging term: nude cargo OR wooden case

Terms of Payment: T/T, L/C AT SIGHT, WEST UNION

Time of delivery: 7 days after receiving deposit

MOQ: 1 SET
