Coal Sand Stone Limestone Cement Gypsum Powder Machine Pulverizing
Raymond Mill Price
FAIR Raymond Pulverizer Grinding Mill Machine:
FAIR Raymond Grinding Mill Machine is the latest powder mill
innovatively designed through deep research by experts on the basis
of long-term powder mill research and development experience. Its
development absorbs the latest European powder grinding technology
and concept, and combines the suggestions of 9158 customers of
powder mill. This mill perfectly satisfies the production demands
of the customers on 200-33μm (80-425Mesh) fine powder.
Raymond mill is widely used in mining industry, also is popular in
building materials, chemical engineering and metallurgy industries.
It can grind the non-flammable and non-explosive materials such as
barite, calcite, potash feldspar, dolomite, gypsum, talcum, mica,
marble, limestone, kaolin, clay, coal, glass etc. It also has wide
applications.
Structure of Raymond Pulverizer Grinding Mill Machine:

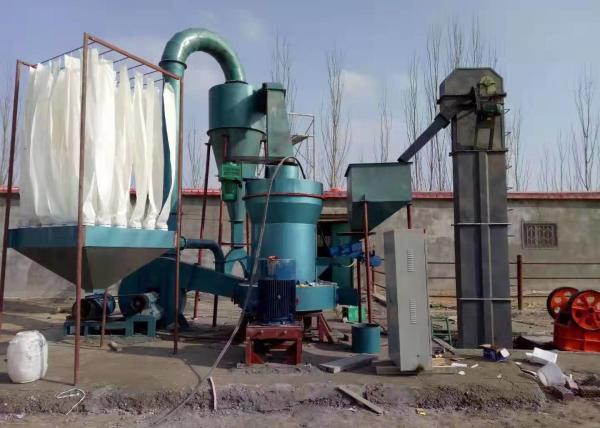

Raymond mill consists of main frame,duct fan,analyzer,cyclone power
collection device,bag
duct collector and pipe connection feeder,crusher and so on. to
meet clients requirements.
Advantages of 200 mesh limestone powder making machine raymond mill
machine
High capacity, 1-20t/h.
The fineness can be adjusted between 50 and 325 mesh (315-45
micron).
Fixed with 1000-1500kg pressure springs, and its capacity increase
20% to 30%; When the grinding roller and grinding ring, stable
capacity and fineness can be guaranteed.
Easy maintenance, simple structure, low investment
Environment-friendly. Application of pulse bag filter & muffler
greatly alleviates dust pollution and noise.
Advanced intelligent speed control device. Convenient adjusting,
uniform particle size.
Main technical parameters of FAIR Raymond mill machine
| Type | Roller | Max. feeding size(mm) | Fineness of product(mm) | Output (t/h) | Power of machine(KW) | Size(mm) |
| Quantity(pieces). | Dimension(mm) | Height(mm) |
| YGM7815 | 3 | 260 | 150 | 15 | 0.613-0.033 | 1-3 | 18.5 | 4300*3500*5100 |
| YGM8314 | 3 | 270 | 140 | 20 | 0.613-0.033 | 1.2-4.6 | 22 | 5300*4100*5200 |
| YGM9517 | 4 | 310 | 170 | 25 | 0.613-0.033 | 2.1-5.6 | 37 | 7100*5900*7900 |
| YGM4121 | 5 | 410 | 210 | 30 | 0.613-0.033 | 2.8-10.5 | 75 | 9200*7250*9700 |
| MTM1600 | 6 | 440 | 270 | 35 | 0.613-0.033 | 5-20 | 132 | 12550*5700*8350 |
Features of Raymond Pulverizer Grinding Mill Machine:
1.High efficiency
Under the same finished final size and the same motor power, the
capacity of the machine is twice as much as jet mill, mixing
grinder and ball mill, and energy consumption decreased 30%.
2.Long lifecycle of spare parts
The ring and roller are forged by special material with high
utilization,the lifetime can reach 2-5 years for grinding calcite
carbonate.
3.High safety and reliability
As no rolling bearings or screws in grinding cavity, there are no
problems caused by bolts shedding or rapid wear of bearings and
seal components.
4.High fineness, flexible adjustment
The final fineness of the grinding materials can be adjusted
between 325 meshes and 2500 mesh (47-5 micron), and the product
fineness can reach D97≤5μm.
5.Environment-friendly
Working principle of Raymonyd Mill
Firstly, raw material is crushed by jaw crusher to the required
size, which is lifted up to the hopper. Secondly, the raw material
goes into the grinding chamber of raymond mill machine through the
electro-magnetic vibrating feeder at an even rate. Thirdly, the raw
material lifted by the shovel is ground into powderbetween the ring
and roller. Fourthly, the powder isblown up to the cyclone
collector through the classifier, which will be collected through
the discharging valve. The unneeded powder, which cannot go through
the classifier, will be reground into the needed powder.
FAQ:
Q1: Does your company supply the spare parts?
A: Yes, we supply the spare parts for your stone crusher plant.
Q2: What details should customers send to us before we provide the
equipment list and quotation?
A: 1) The materials to be processed? quartz, talc, etc.
2) The maximum size of the stone before grinding?
3) The expected handling capacity? ton per hour or ton per day
Q3: If I plan to build a complete grinding mill, can your company
provide technical support?
A: Yeah, senior technical engineers will assigned to provide
installation guidance, commissioning, etc. for your project.
Q4: What is your payment method? Does you company support Trade
Assurance on Alibaba?
A: T/T, Letter of Credit, Western Union, etc are available.
Moreover, the Trade Assurance on Alibaba is okay.
Q5: Can the products be delivered to the Qingdao port, Shanghai
Port, Urumqi, Guangzhou, Dali, etc?
A: Sure, the products can be delivered to the destination as
required.
Please tell me your demand information, so we can send you accurate
quotation:
1.Which kind of material you are going to grinding?
(Dolomite; Calcite; Quartz; Basalt; Barite; Feldspar ; Gravel;
Bentonite; Gypsum; Granite; Coal; Slag; Pebble; Others )
2. What's the production capacity you want? How many tons or cubic
meters per hour?
( > 100 TPH > 50 TPH > 30 TPH > 10 TPH > 1 TPH <
1 TPH)
3.What's the granularity of the final products you need?
(in milimeter, micron or mesh)
4. What's the max input size of the material?
(In inch,centimeter or milimeter)
We will give you factory price with full specification,so pls leave
us an inquiry to know more details about price, packaging
shipping and discount.
